منزل المنتجاتالضغط الرقمي الارسالSMF 19 Pressure Switch 1/4 G NPT T Reliable Control Switch High Quality For Air Compressor Pump NBSANMINSE

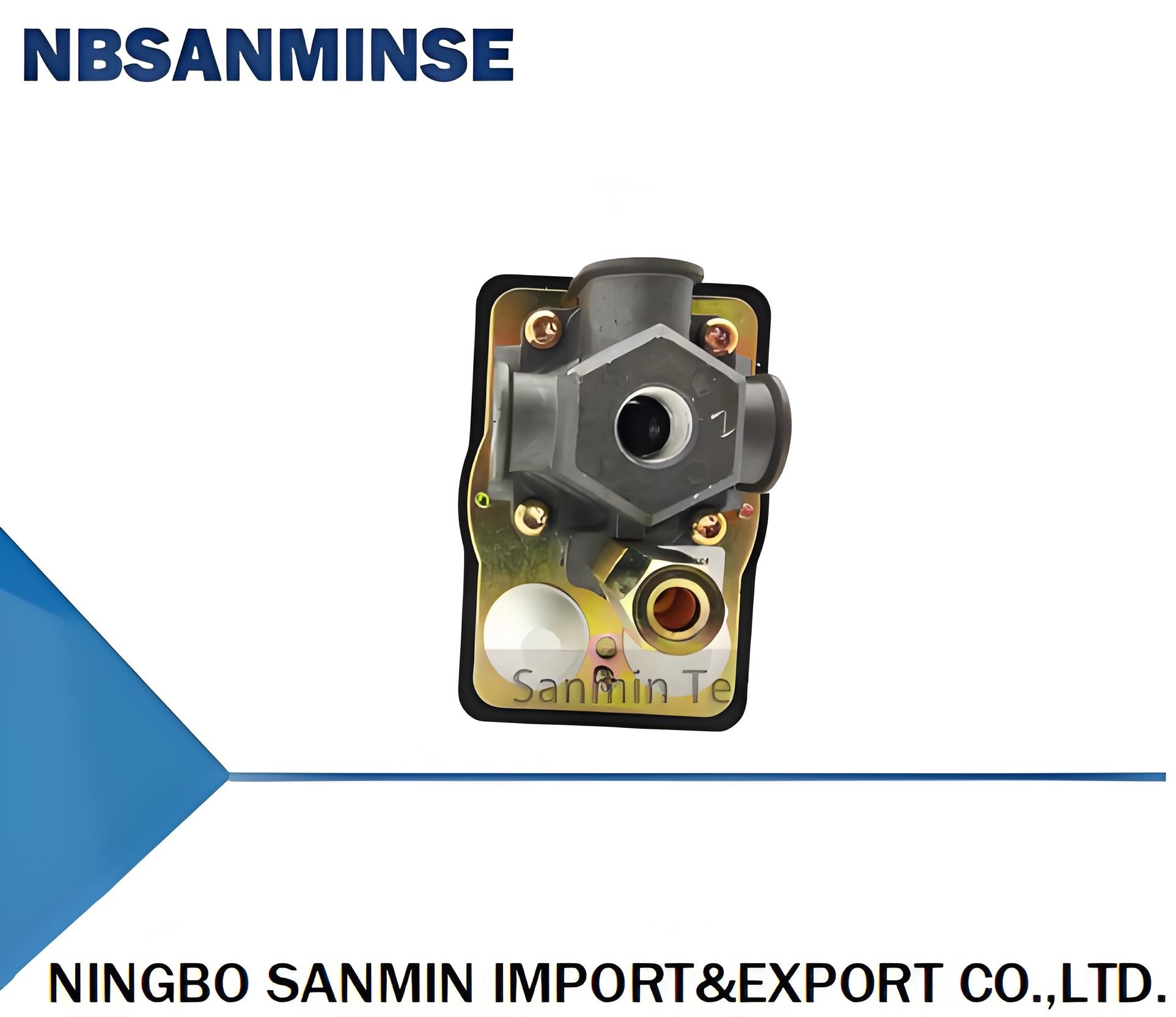

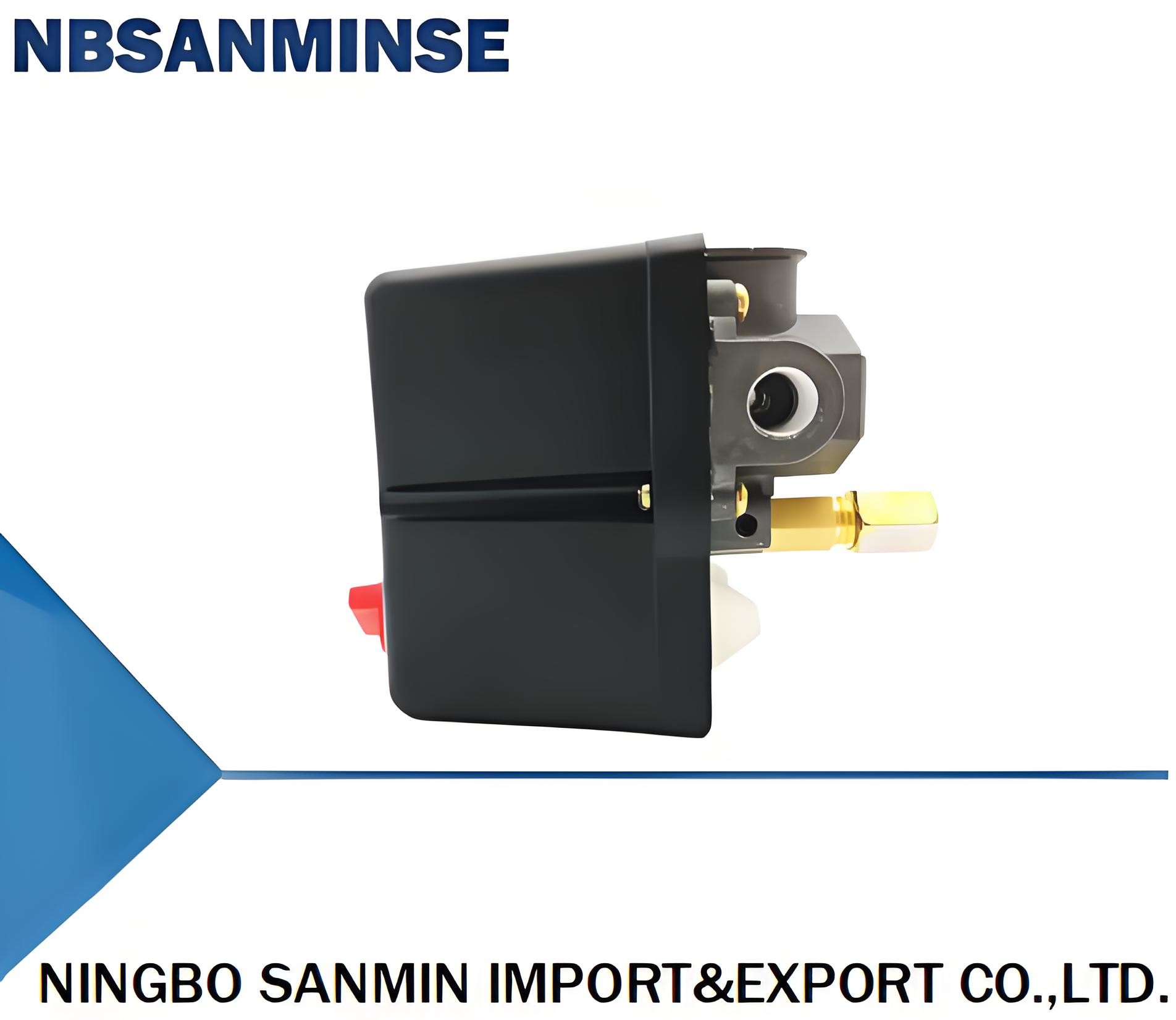

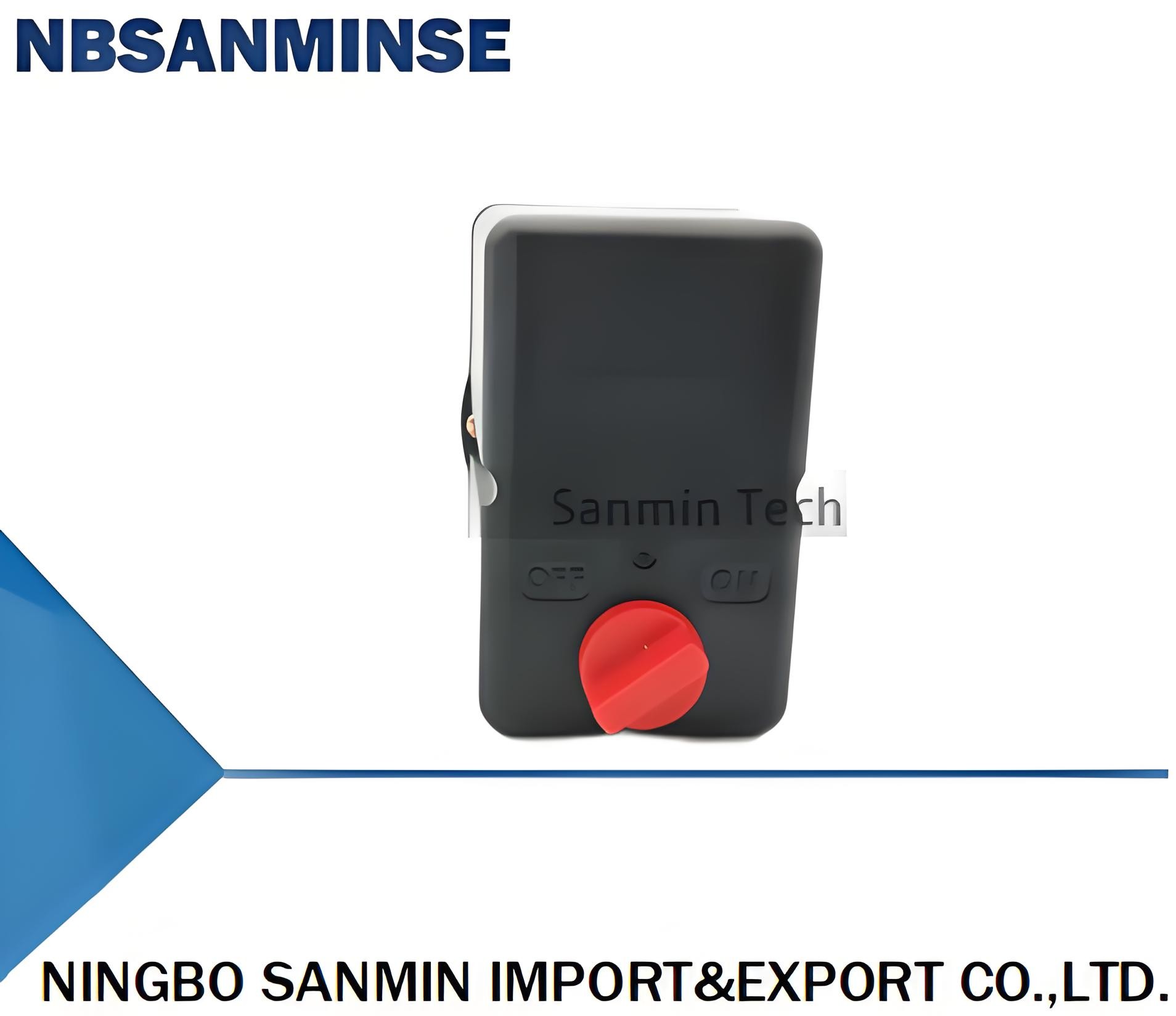

SMF 19 Pressure Switch 1/4 G NPT T Reliable Control Switch High Quality For Air Compressor Pump NBSANMINSE
SMF 19 Pressure Switch 1/4 G NPT T Reliable Control Switch High Quality For Air Compressor Pump NBSANMINSE SMF 19 Pressure Switch 1/4 G NPT T Reliable Control Switch High Quality For Air Compressor Pump NBSANMINSE SMF 19 Pressure Switch 1/4 G NPT T Reliable Control Switch High Quality For Air Compressor Pump NBSANMINSE
ﺎﺘﺼﻟ ﺍﻶﻧ

SMF 19 Pressure Switch 1/4 G NPT T Reliable Control Switch High Quality For Air Compressor Pump NBSANMINSE

مكان المنشأ: الصين اسم العلامة التجارية: NBSANMINSE
رقم الموديل: SMF19

معلومات تفصيلية
النموذج: SMF19 الحجم: 1pc 2pcs 5pcs
إصدار الشهادات: ce نوع التبديل: مفتاح الضغط
المواد: سبيكة المنيوم خيط: ز

منتوج وصف

Ex : ON :1Bar OFF:2Bar =NC

ON :2Bar OFF:1Bar =NO

ON :-0.9Bar OFF:-0.65Bar =NO

ON :-0.65Bar OFF:-0.9Bar =NC


ON>OFF is NO , ON<OFF is NC

The images shown are not all the actual item and are for your reference only
NBSANMINSE SMF 19 1/4 G NPT T Pressure Switch Reliable Control Switch High Quality For Air Compressor Pump

SMF 19 Pressure Switch 1/4 G NPT T Reliable Control Switch High Quality For Air Compressor Pump NBSANMINSE 0SMF 19 Pressure Switch 1/4 G NPT T Reliable Control Switch High Quality For Air Compressor Pump NBSANMINSE 1SMF 19 Pressure Switch 1/4 G NPT T Reliable Control Switch High Quality For Air Compressor Pump NBSANMINSE 2SMF 19 Pressure Switch 1/4 G NPT T Reliable Control Switch High Quality For Air Compressor Pump NBSANMINSE 3SMF 19 Pressure Switch 1/4 G NPT T Reliable Control Switch High Quality For Air Compressor Pump NBSANMINSE 4SMF 19 Pressure Switch 1/4 G NPT T Reliable Control Switch High Quality For Air Compressor Pump NBSANMINSE 5


G1-4 = G 1/4"
NPT1-4 = NPT 1/4"

SMF19 pressure switches provide time tested, reliable control for automatic water systems. The switch is universally acceptable for use as original equipment on water well pumps or pumping systems. It is available with an On-Off knob for manual cut off the pump.



SMF19 pressure switches can also be used to regulate the tank pressure between two preset values on onephase electrically driven air compressors. They are available with an unloader valve, which prevents compressors from starting under load, and it is available with an On-Off knob for manual cut off the compressor.




MODEL
Media
Unloader
Valve
Operating
Pressure Range(bar)
Factory Setting
(bar)
Differential
(bar)
Electrical Rating
Contact Arrangement
SMF19
Air
with
1-6
1-3
2-4
16A ,25/250VAC
NC
2-11
1.4-3.5
6-8
5-14
1.8-4.0
8-10

UL approved rating for SMF19 : Max Cut-Out 200 PSI, Min Cut-In 15 PSI, Differential 15-60 PSIApproval: UL, CUL, TUV, CE
26FLA, 156LRA, 120VAC/240VAC A600, N300
Other pipe fitting connection is available on request.
Conversion: 1 Bar = 14.5 PSI

SMF 19 Pressure Switch 1/4 G NPT T Reliable Control Switch High Quality For Air Compressor Pump NBSANMINSE 6
