تفاصيل المنتج:
|
| الجهد المقنن: | تيار مستمر 24 فولت | عقد الحالي: | 0.32 |
|---|---|---|---|
| قوة: | 7.7 (ث) | درجة حرارة العمل.: | -5 - 50 (درجة مئوية) |
| ضغط العمل: | 0.2 - 0.8 (ميجا باسكال) | ||

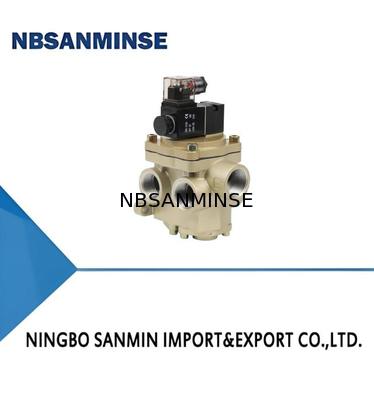

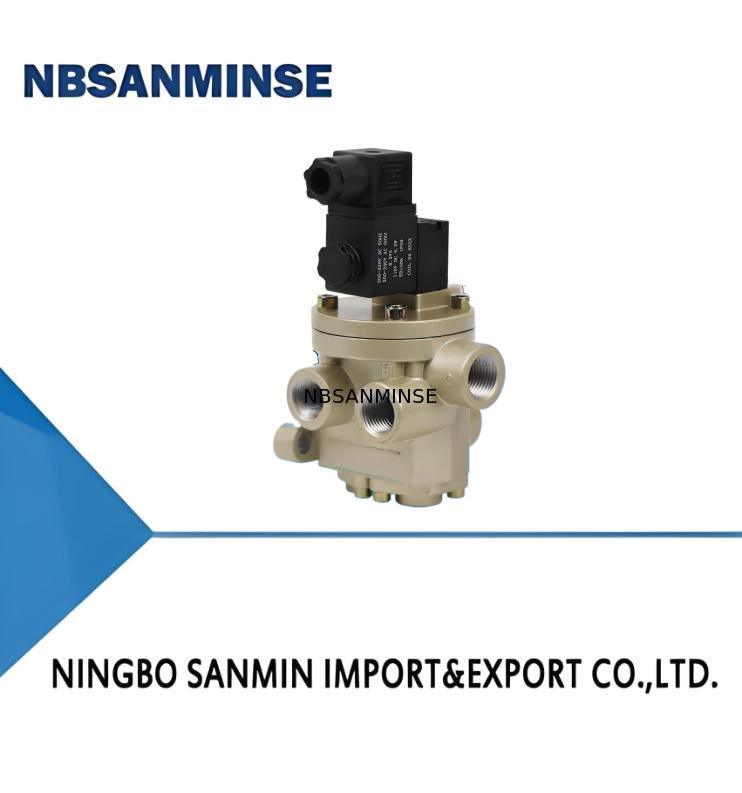

| إبراز: | 5/2-way pneumatic poppet valve,K25J-WHSX solenoid valve,industrial pneumatic solenoid valve,K25J-WHSX solenoid valve,industrial pneumatic solenoid valve |
||
| Type | Nominal Dia | Threads G(Imperial) | B | C | D | E | F | φG | R | M |
| K25J-8W | 8 | G1/4 | 95 | 94 | 45 | 32 | 31 | φ9.0 | 43.5 | 160 |
| K25J-10W | 10 | G3/8 | 95 | 94 | 45 | 32 | 31 | φ9.0 | 43.5 | 160 |
| K25J-15W | 15 | G1/2 | 95 | 94 | 45 | 32 | 31 | φ9.0 | 43.5 | 160 |
| K25J-20W | 20 | G3/4 | 127 | 124 | 52 | 47 | 52 | φ10.5 | 58 | 195 |
| K25J-25W | 25 | G1 | 127 | 124 | 52 | 47 | 52 | φ10.5 | 58 | 195 |
| K25J-32W | 32 | G1-1/4 | 155 | 220 | 67 | 55 | 111 | φ11 | 80 | 215 |
| K25J-40W | 40 | G1-1/2 | 155 | 220 | 67 | 55 | 111 | φ11 | 80 | 215 |
| Rated Voltage | AC100V 50HZ | AC100V 60HZ | AC110V 60HZ | AC200V 50HZ | AC200V 60HZ | AC220V 60HZ |
| Starting Current | 0.29 | 0.25 | 0.27 | 0.14 | 0.12 | 0.13 |
| Holding Current | 0.15 | 0.12 | 0.15 | 0.08 | 0.06 | 0.07 |
| PowerConsumption (W) | 8 | 7 | 9 | 8 | 7 | 9 |
| Valve Type | K25JD-W |
| Rated Voltage | DC 24V |
| Holding Current | 0.32 |
| Power Consumption (W) | 7.7 |
