تفاصيل المنتج:
|
| ضغط العمل: | 1.5~8 (بار) | ضغط إثبات: | 12 (بار) |
|---|---|---|---|
| سكتة دماغية: | 20～200 (مم) | درجة حرارة التشغيل: | -25 ～ +80 (درجة مئوية) |
| التجويف: | Φ40 (مم) | مادة: | الألومنيوم |
| إبراز: | QGaB QGbB Model Pneumatic Air Cylinder,12 bar Proof Pressure Air Cylinder,1.5~8 bar Working Pressure Pneumatic Cylinder,12 bar Proof Pressure Air Cylinder,1.5~8 bar Working Pressure Pneumatic Cylinder |
||

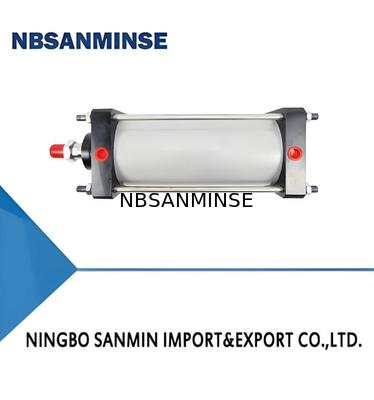

1.It is a derivative product of QGA and QGB series cylinders.
2.The piston rod diameter is larger than the standard size, with good rigidity and can bear large loads.
II. Graphical Symbols
Cylinder without Cushion
Cylinder with Cushion
III. Model
| Model | QGAb,QGBb | |||||||
| Bore (mm) | Φ40 | Φ50 | Φ63 | Φ80 | Φ100 | Φ125 | Φ160 | Φ200 |
| Stroke (mm) | 20～200 | 25～250 | 30～300 | 40～400 | 50～1000 | 63～1250 | 80～1600 | 100～2000 |
| Working Pressure (bar) | 1.5～8 | |||||||
| Proof Pressure (bar) | 12 | |||||||
| Operating Temperature Range (℃) | -25 ～ +80 (under non-freezing conditions) | |||||||
| Working Medium | Purified compressed air with oil mist | |||||||
Outline Drawing of QGAb Type Cylinder
