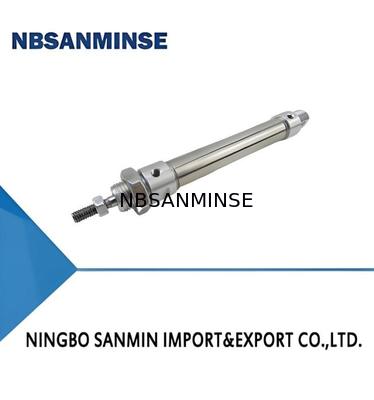

تفاصيل المنتج:
|
| شكل توسيد: | وسادة الوسادة | ضغط إثبات: | 15 (بار) |
|---|---|---|---|
| درجة حرارة التشغيل: | -25 ～ +80 (درجة مئوية) | إمدادات النفط: | غير مطلوب |
| سرعة التشغيل: | 50～500 (مم/ث) | مادة: | الفولاذ المقاوم للصدأ |
| إبراز: | 10Y-1 Model Pneumatic Air Cylinder,15 Bar Proof Pressure Air Cylinder,Cushion Pad Cushioning Pneumatic Cylinder,15 Bar Proof Pressure Air Cylinder,Cushion Pad Cushioning Pneumatic Cylinder |
||
1.Parts are made of aluminum alloy, featuring light weight and small volume. The inner hole of the cylinder barrel is hard anodized, especially wear-resistant, with a long service life.
2.Installation dimensions comply with ISO (International Standard).
3.Oil-free (oil-lubricated is also available) lubrication, avoiding oil-gas pollution, and the oil mist lubricator can be omitted.
II. Model
| ① | Cylinder Model | See Cylinder Performance Table for details | |||
| ② | Installation Form | See the diagram on the next page for details | |||
| ⑤ | Rear Cover Form | See the diagram on the next page for details | |||
| Code | S | P | K | ||
| Name | Basic Type | Axial Port | FD-13RV | ||
| ⑥ | Valve Operation Mode | A:Push Type when Energized | |||
| B:Pull Type when Energized | |||||
| ⑦ | Valve Operating Voltage | 5:AC220V 50HZ | |||
| 8:DC24V | |||||
| ⑧ | Switch Model | See Switch Performance Table for details | |||
| Code | K | H | |||
| Name | FD-03R | FD-13RV | |||
| ⑨ | Number of Switches | ||||
| ⑩ | Rod End Connection Accessories | See the diagram on the next page for details | |||

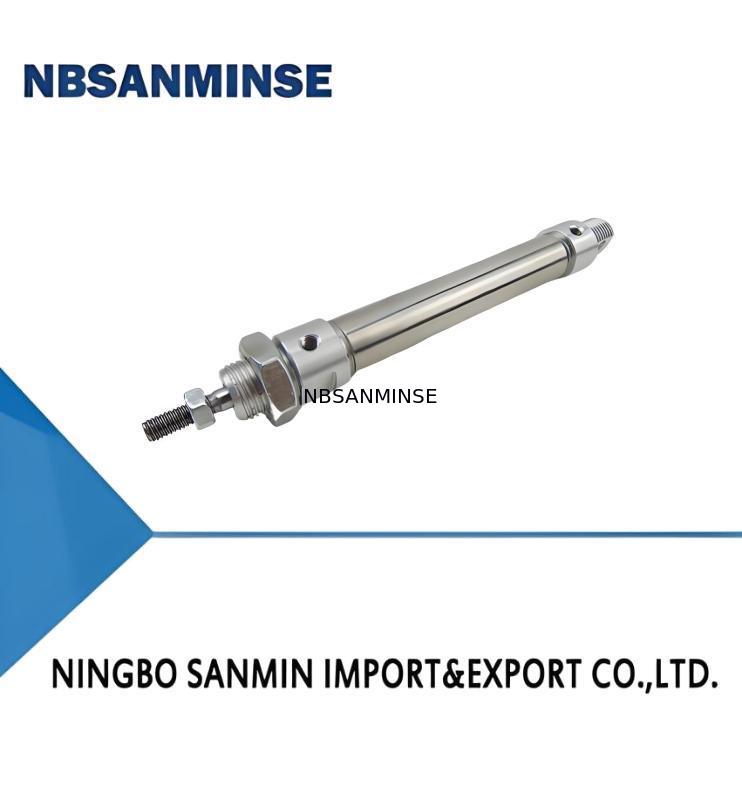

III. Graphical Symbols and Appearance
IV. Main Technical Parameters
1.Main Technical Parameters of Cylinder
| Variety | Standard Type | With Switch Type | With Valve Type | With Vave and Switch Type |
| Model | 10Y-1 | 10Y-1R | 10Y-1V | 10Y-1K |
| Cylinder Bore(mm) | φ8,Φ10,Φ12,Φ16,Φ20,φ25,中32,Φ40,φ50 | 中20,Φ25,中32,中40,φ50 | ||
| Maximum Stroke(mm) | Φ8,Φ10:200;Φ12,Φ16:300;Φ20,Φ25:400;φ32:500;Φ40:600;φ50:800 | |||
| Maximum Stroke(mm) | No Limit | 37 | No Limit | 37 |
| Operating Pressure Range (bar) | Φ8~16:1～10;Φ20~φ50:0.5～10 | 1.5～10 | ||
| Proof Pressure (bar) | 15 | |||
| Operating Speed Range(mm/s) | Φ8~16:50～500;20~50:50～700 | 50~500 | ||
| Operating Temperature Range(℃) | -25～+80(under non-freezing conditions) | |||
| Working Medium | Dry and Clean Compressed Air | |||
| Cushioning Form | Cushion Pad | |||
| Oil Supply | Not Required(Oil-lubricatedis Also Available) | |||
| Model | FD-03R | FD-13RV |
| Operating Voltage Range | 5~240V DC/AC | 5~240V DC/AC |
| Operating Current Range | 100mA(max) | 500mA |
| Maximum Contact Capacity | 10W(max) | 10W(max) |
| Leakage Current | 0 | None |
| Indicator Light | Red LED | Yellow LED |
| Operation Time | ||
| Recovery Time | ||
| Impact Resistance | 30G | 30G |
Note:
① Switch FD-03R is applicable to cylinders with bore Φ8～Φ50.
② FD-13RV is applicable to cylinders with bore Φ8～Φ50.
③ Please refer to the relevant table of valves in the 10Y-2 series cylinders for the main technical parameters of the valve.
