تفاصيل المنتج:
|
| نموذج: | 10Y-2 | ضغط إثبات: | 15 (بار) |
|---|---|---|---|
| شكل توسيد: | وسادة الوسادة | بدءا الحالية: | AC220V |
| درجة حرارة التشغيل: | -25 ～ +80 درجة مئوية | مادة:: | الألومنيوم |
| إبراز: | 10Y-1 Model Pneumatic Air Cylinder,15 Bar Proof Pressure Air Cylinder,Cushion Pad Cushioning Pneumatic Cylinder,15 Bar Proof Pressure Air Cylinder,Cushion Pad Cushioning Pneumatic Cylinder |
||

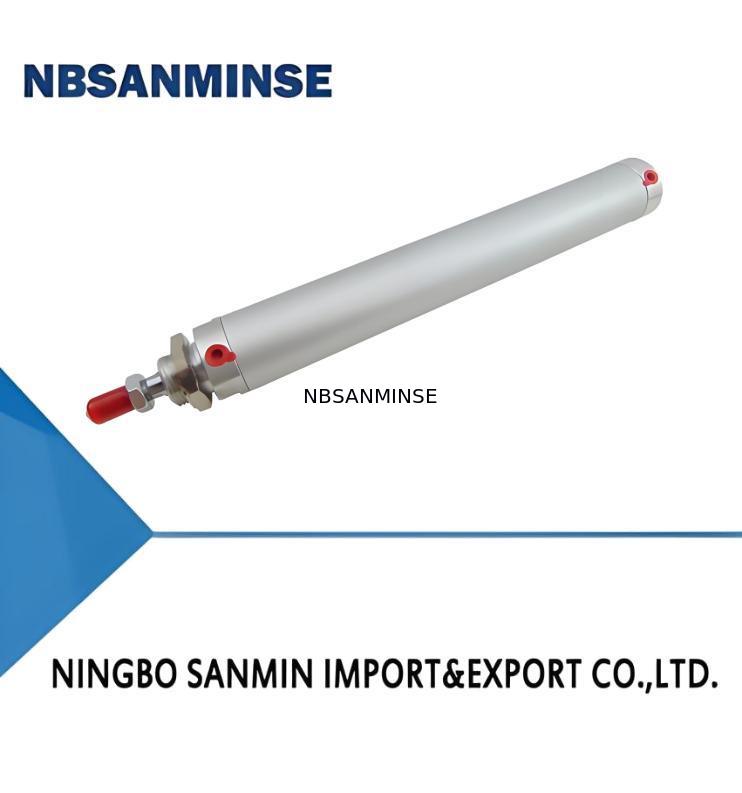

1.Parts are made of aluminum alloy, featuring light weight and small volume. The inner hole of the cylinder barrel is hard anodized, especially wear-resistant, with a long service life.
2.Installation dimensions comply with ISO (International Standard).
3.Oil-free (oil-lubricated is also available) lubrication, avoiding oil-gas pollution, and the oil mist lubricator can be omitted.
4.There are many varieties and specifications, and combined cylinders with switches and valves are available,
saving pipe connection time and making maintenance and operation convenient.
II. Graphical Symbols and Appearance
III. Model
| ① | Cylinder Model | See Cylinder Performance Table for details | |||
| ② | Installation Form | See the diagram on the next page for details | |||
| ⑤ | Rear Cover Form | See the diagram on the next page for details | |||
| Code | S | P | K | ||
| Name | Basic Type | Axial Port | FD-13RV | ||
| ⑥ | Valve Operation Mode | A: Push Type when Energized | |||
| B: Pull Type when Energized | |||||
| ⑦ | Valve Operating Voltage | 5:AC220V 50HZ | |||
| 8:DC24V | |||||
| ⑧ | Switch Model | See Switch Performance Table for details | |||
| Code | K | H | |||
| Name | FD-03R | FD-13RV | |||
| ⑨ | Number of Switches | ||||
| ⑩ | Rod End Connection Accessories | See Diagram 10Y-1 for details | |||
| Variety | Standard Type | With Switch Type | With Valve Type | With Valve and Switch Type |
| Model | 10Y-2 | 10Y-2R | 10Y-2V | 10Y-2K |
| Cylinder Bore (mm) | φ20,φ25,Φ32,φ40,φ50 | |||
| Maximum Stroke (mm) | Φ20:300,Φ25:400;Φ32:500;Φ40:600;Φ50:700 | |||
| Maximum Stroke (mm) | No Limit | 37 | No Limit | 37 |
| Operating Pressure Range (bar) | 0.5～10 | 1.5～10 | ||
| Proof Pressure (bar) | 15 | |||
| Operating Speed Range (mm/s) | 50～700 | 50～500 | ||
| Operating Temperature Range (℃) | -25 ～ +80 (under non-freezing conditions) | |||
| Working Medium | Dry and Clean Compressed Air | |||
| Cushioning Form | Cushion Pad | |||
| Oil Supply | Not Required (Oil-lubricated is Also Available) | |||
| Model | FD-03R | ||
| Operating Voltage Range | 5～240V DC/AC | ||
| Operating Current Range | 100mA(max) | ||
| Maximum Contact Capacity | 10W(max) | ||
| Operation Time | |||
| Recovery Time | |||
| Parameter | 2/5 Way Single Solenoid Operated Directional Valve | |||
| Variety | A: Push Type when Energized | B: Pull Type when Energized | ||
| Rated Voltage | AC220V,50Hz;DC24V | |||
| Allowable Voltage Fluctuation | ±10% | |||
| Starting Current | AC220V,50Hz;0.028A | |||
| Holding Current | AC220V,50Hz:0.015A;DC24V:0.09A | |||
| Power Consumption | AC220V,50Hz:1.8W | |||
| DC24V:2.2W | ||||
| Insulation Class | B | |||
| Operating Pressure Range | 1.5～10bar | |||
1.The dimensions of cylinder accessories for the 10Y-2 series cylinders are the same as those for the 10Y-1 cylinders with Φ20～Φ50. Therefore, when calculating the installation dimensions of 10Y-2 cylinders, they can be calculated by referring to this table and the dimensions of cylinder accessories for the 10Y-1 series.
2.The SD, FA, and LS installation forms for the 10Y-2 (Standard Type) cylinders with bore sizes Φ20 and Φ25 comply with ISO.
3.Please refer to the installation forms and rod end connection forms of the 10Y-1 series for the installation forms and rod end connection forms of 10Y-2 with Φ20～Φ50.
