تفاصيل المنتج:
|
| السكتة الدماغية العمل: | 45 (مم) | ضغط العمل: | 1-6.3 (بار) |
|---|---|---|---|
| ضغط إثبات: | 9.54 (بار) | قطر قضيب المكبس: | 32 (مم) |
| درجة حرارة التشغيل: | -25～+80(°C) | مادة: | فُولاَذ |
| إبراز: | 45mm Working Stroke Pneumatic Air Cylinder,1-6.3bar Working Pressure Guided Pneumatic Cylinder,9.54bar Proof Pressure Locking Cylinder,1-6.3bar Working Pressure Guided Pneumatic Cylinder,9.54bar Proof Pressure Locking Cylinder |
||

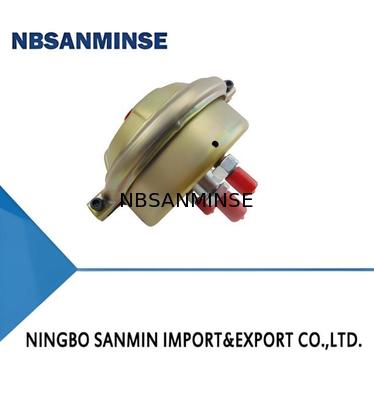

1.It is an innovative product of our company, suitable for short-stroke occasions.
2.It has good sealing performance and is not easy to leak.
3.It has a simple and compact structure, small volume and light weight.
4.There are no wearing parts, and maintenance is convenient.
| Equivalent Bore Diameter(mm) | 140 | 160 | |
| Piston Rod Diameter(mm) | 32 | 32 | |
| Working Stroke(mm) | 45 | 50 | |
| Working Pressure(bar) | 1~6.3 | ||
| Proof Pressure(bar) | 9.54 | ||
| Operating Temperature Range(℃) | -25～+80 (under non-freezing conditions) | ||
| Working Medium | Purified compressed air with oil mist | ||
| Cylinder Thrust (P=5bar) | Stroke Start | 7716 | 9810 |
| Stroke End | 5648 | 7198 | |
| Spring Initial Reaction Force(N) | 84.4 | 120 | |
| Spring Final Reaction Force(N) | 180 | 230 | |
Note: Maximum stroke = Working stroke ÷ 0.8
