تفاصيل المنتج:
|
| شفرة: | TL103-15 TL103-20 | الحجم （مم）: | D1 1/2 "3/4" |
|---|---|---|---|
| اسم الجزء: | مقبض عنصر إغلاق جسم الصمام | مادة: | النحاس PTFE |
| الضغط الاسمي: | 0.6MPA | قوة اختبار الضغط: | 1.0mpa |
| ختم ضغط اختبار: | 0.6MPA | درجة حرارة التشغيل: | ≤200 ℃ |
| وسيط العمل: | الماء والبخار والزيت | ||
| إبراز: | مقياس مستوى السائل D1 1/2",عنصر إحكام إغلاق مقياس مستوى السائل,مقياس مستوى السائل بثلاثة مقابض,Liquid Level Gauge Sealing Element,Three Handle Liquid Level Gauge |
||

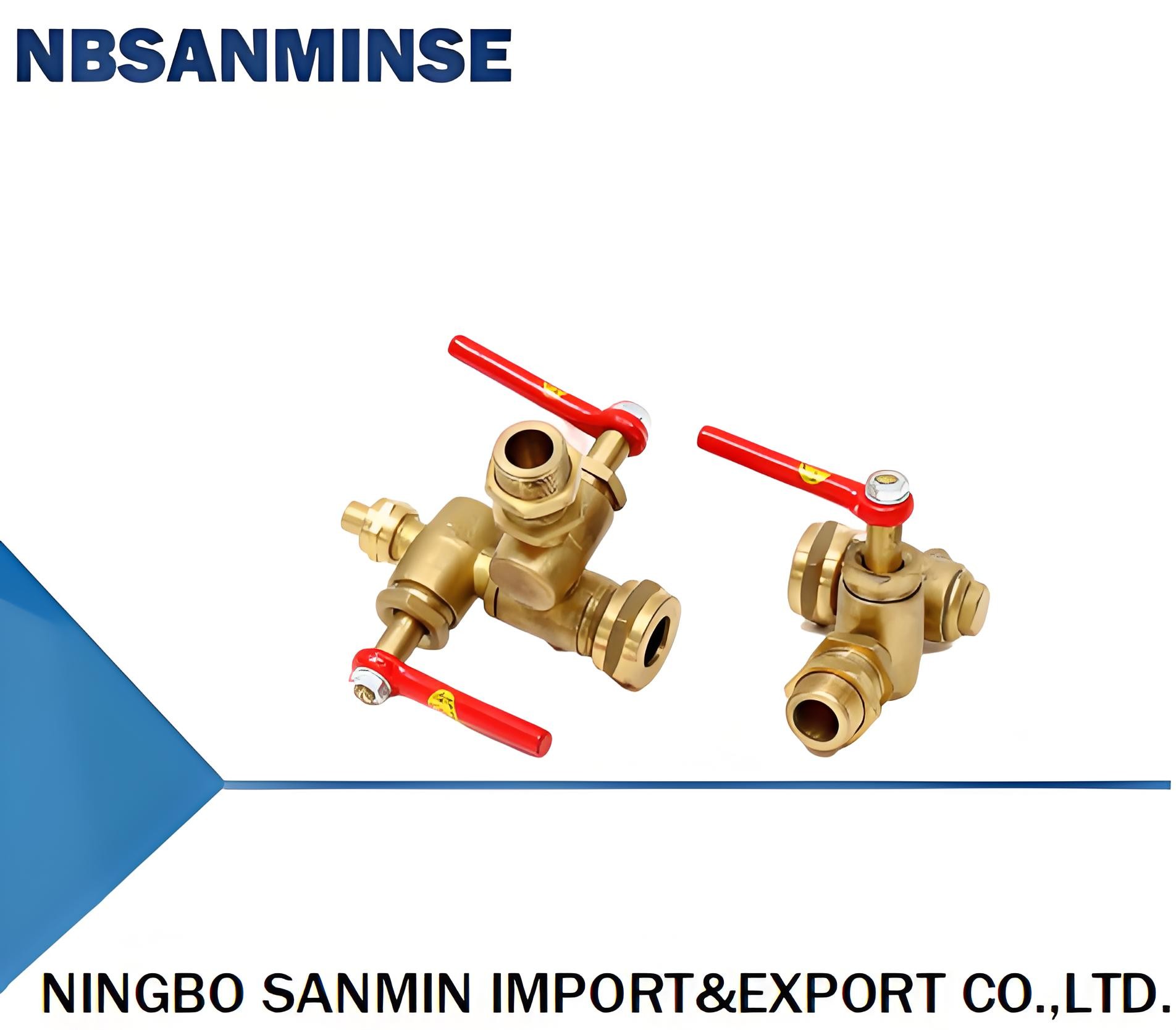

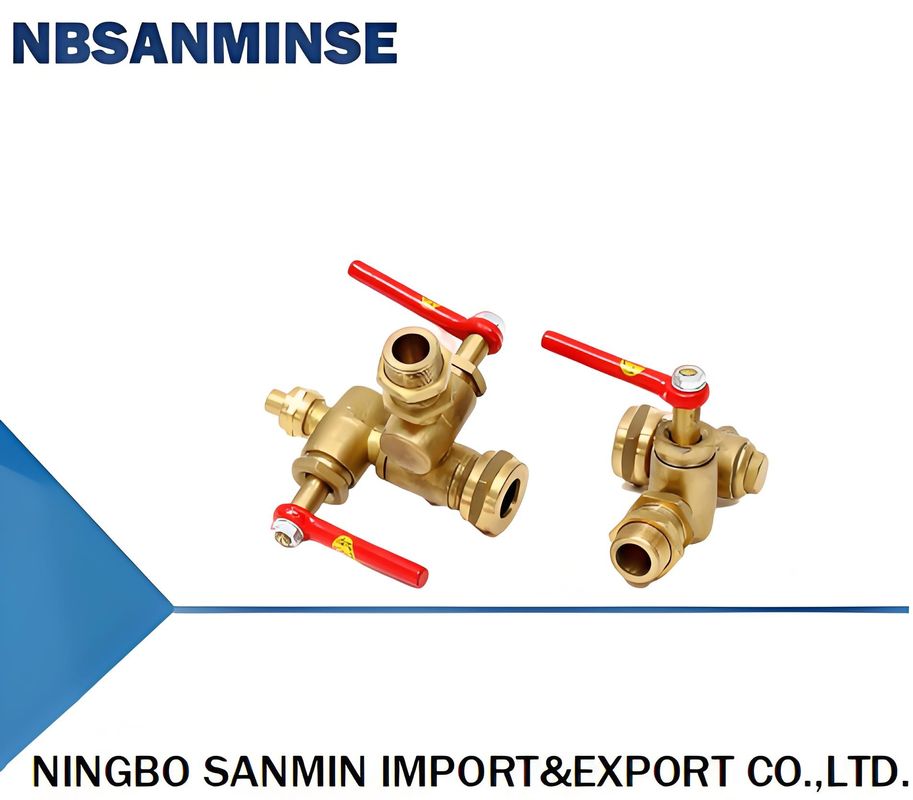

This level gauge (also known as a water level gauge) is suitable for water, steam, and reservoirs with a working temperature t ≤ 200 ℃, and is used to indicate the level of liquid through a glass tube. 103 X29F-6T type code: 103 X29F-6T type (three handles/pair) water level gauge main parts material part name material valve body brass seal polytetrafluoroethylene (plastic king) handle forged steel main technical parameters nominal pressure PN0.6MPa strength test pressure 1.0 sealing test pressure 0.6 working temperature ≤ 200 ℃ working medium: water, steam, oil
| code | size(mm) | Part name | material | |||
| D1 | D2 | L1 | L2 | valve body | brass | |
| TL103-15 | 1/2" | 14 | 87 | 25 | Sealing element | PTFE |
| TL103-20 | 3/4" | 19 | 95 | 30 | handle | forged steel |
| Nominal pressure | 0.6Mpa | |||||
| strength test pressure | 1.0Mpa | |||||
| Seal test pressure | 0.6Mpa | |||||
| operation temperature | ≤200℃ | |||||
| Working medium | Water, steam, oil | |||||
